NORM Laser Rangefinder 600M 900M 1200M 1500M Laser Distance Meter for Golf Sport, Hunting, Survey

This product is suitable for professionals with distance measurement needs. Different types of products can be selected according to different needs. No matter for height measurement and speed measurement requirements, or for golf, foggy weather measurement, hunting, and other activities, there are corresponding products to choose from.

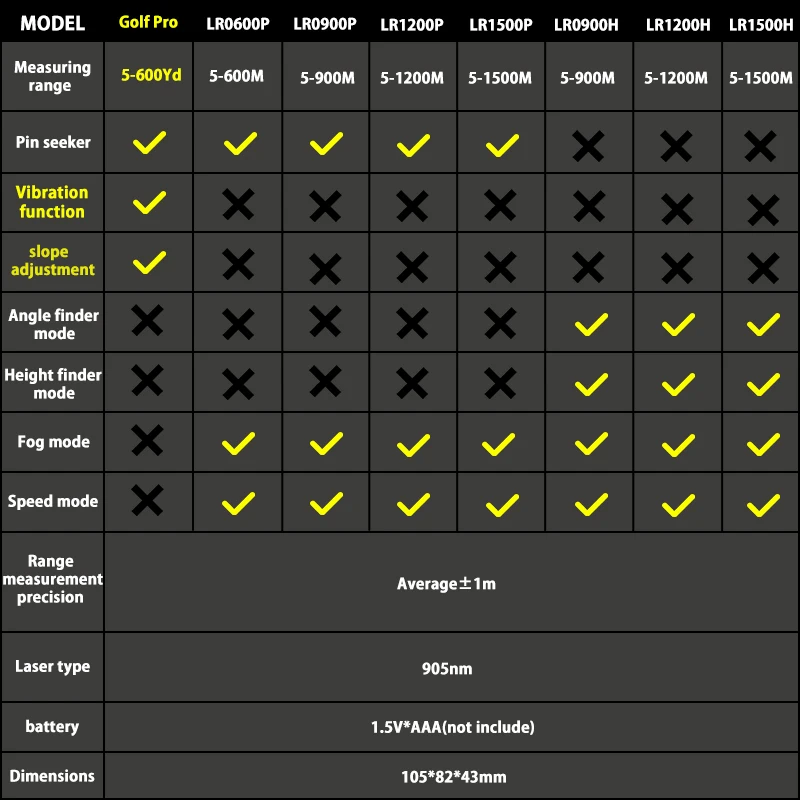

Product parameters

Golf pro: measuring distance 5-600Yd, vibration feedback, Trajectory correction mode, pin seeker;
LR0500P (yellow and black): measuring distance 5-500M, foggy weather mode, speed measuring function, pin seeker;

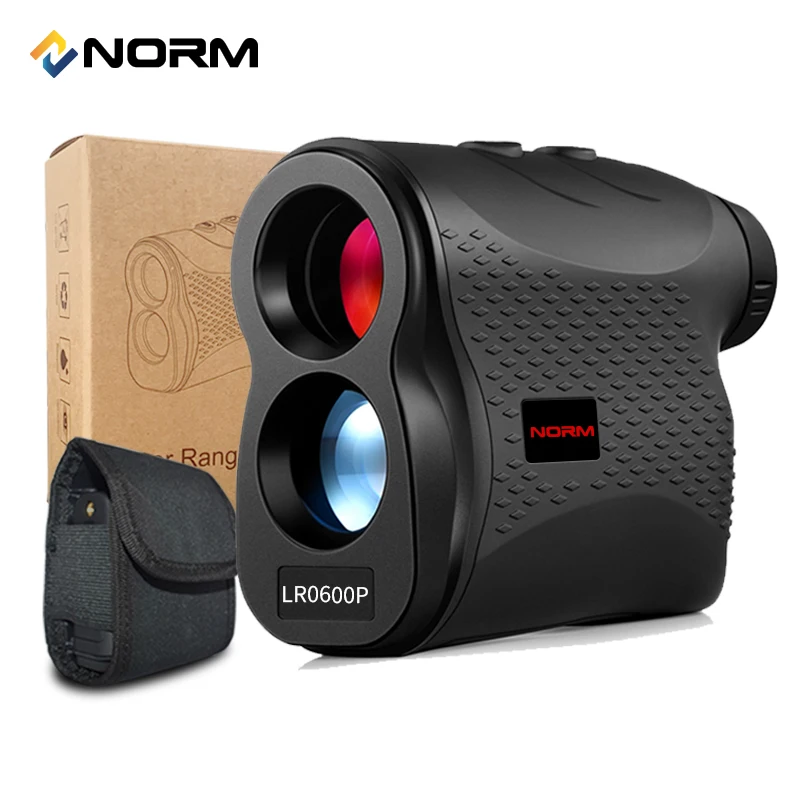

LR0600P: measuring distance 5-600M, foggy weather mode, speed measuring function, pin seeker;
LR0900P: measuring distance 5-900M, foggy weather mode, speed measuring function, pin seeker;
LR1200P: measuring distance 5-1200M, foggy weather mode, speed measuring function, pin seeker;
LR1500P: measuring distance 5-1500M, foggy weather mode, speed measurement function; Pin seeker;
LR0900H: Measuring distance 5-900M, foggy weather mode, speed measurement function, height measurement and angle measurement;
LR1200H: Measuring distance 5-1200M, foggy weather mode, speed measurement function, height measurement and angle measurement;
LR1500H: Measuring distance 5-1500M, foggy weather mode, speed measurement function, height measurement and angle measurement;
Measurement accuracy: ± 1M/±0.5% ;

Purchase recommendation

If you are playing golf, it is recommended to choose Golf Pro;
If you need angle/height measurement, LR0900H, LR1200H and LR1500H are recommended;
If you take part in hunting activities, choose LR0500P, LR0600P, and LR0900P according to distance;
If you need remote measurement, it is recommended to choose LR0900P, LR1200P and LR1500P;

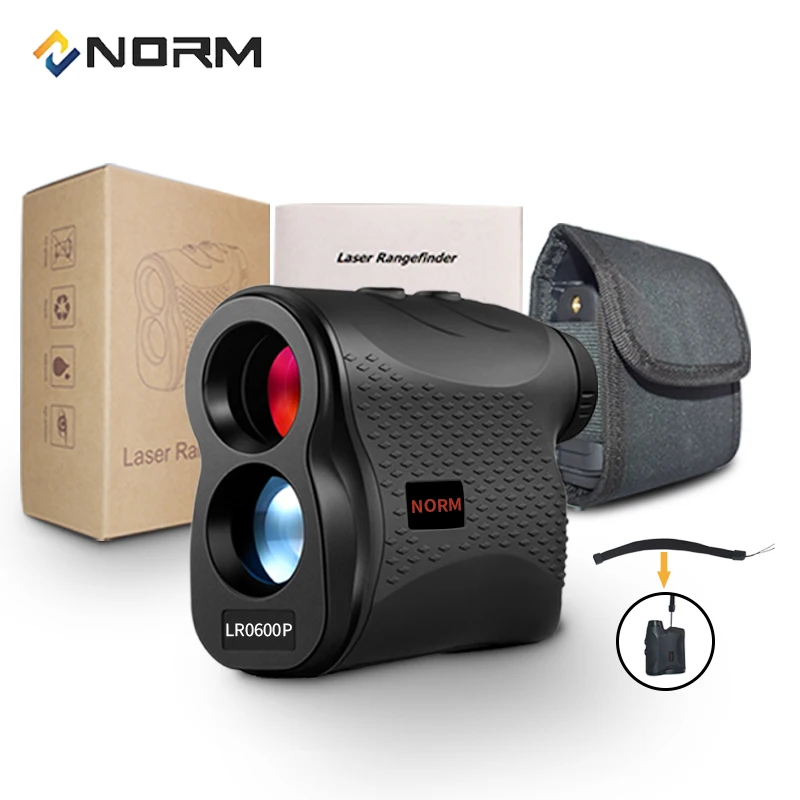

Product packaging content

* 1 ranging telescope
* 1 Instruction in English
* 1 belt
* 1 Portable bag
* 1 carton

5 Mode Selections

A Fog Mode
B Speed Mode
C Distance Mode
D Pinseeker Mode or Height/Angle Finder Mode
E GolfPro

GolfPro

(Only For GolfPro)
Vibration and Trajectory adjustment mode.

A Fog Mode

(For LR0600 LR0900 LR1200 LR1500 LR0900H LR1200H LR1500H)
Aim at the target object and short-press the power button. Then, the distance value will be displayed on the lens.

B Speed Mode

(For LR0600 LR0900 LR1200 LR1500 LR0900H LR1200H LR1500H)
Aim at the object and short-press the power button. Keep aiming as the object moves until the speed value displays on the screen.

C Distance Mode

Single distance measuring: Aim at the target object and short-press the power button to start measuring. The measuring result would be displayed on the lens.

Continuous distance measuring: Long press the power button. The distance value would be displayed in real time according to where you are pointing at.

D Pinseeker Mode

(For LR0600 LR0900 LR1200 LR1500)
Pinseeker mode is designed for measuring the distance to a flagpole. Under this mode, the product is able to separate the flagpole (point D) from the clutter (such as trees and bushes) in the background. Only the distance to point D would be displayed.

D Height/Angle finder Mode

(For LR900H LR1200H LR1500H)
Height/Angle finder Mode is designed for measuring the height or angle of the building or trees.

LCD Display

1. “Scan” Continuous measuring mode
2. “Fog” Fog mode
3. “speed” Speed finder mode
4. “ Flag + Scan” Pinseeker mode（Golf）
5. “Battery” Low battery icon
6. “Rectangular” Target centre
7. “1888.8” Display numerical value. When there is no such numerical value, four dashes “—-” would be displayed.
8. “Y KM/HS” Display measuring unit. In distance measuring mode, “M” or “Y” will be displayed. In speed finder mode, “KM/h” or “M/S” will be displayed
